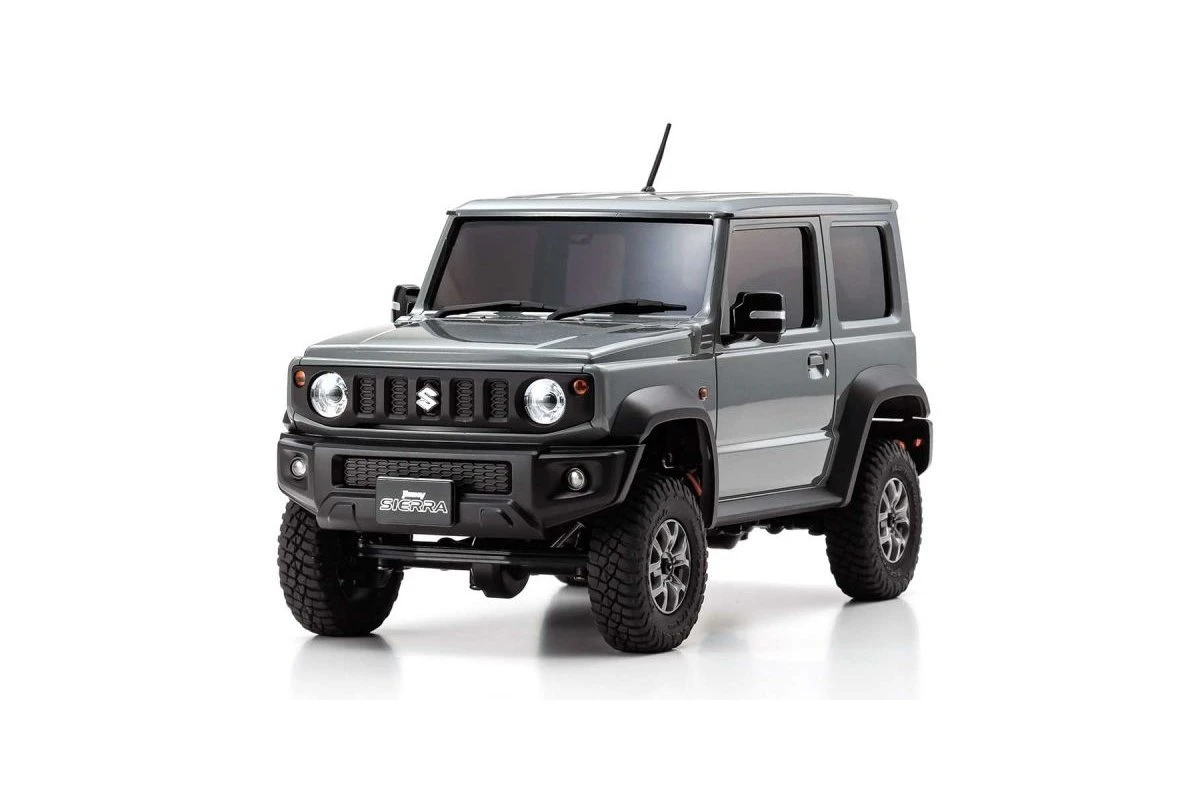

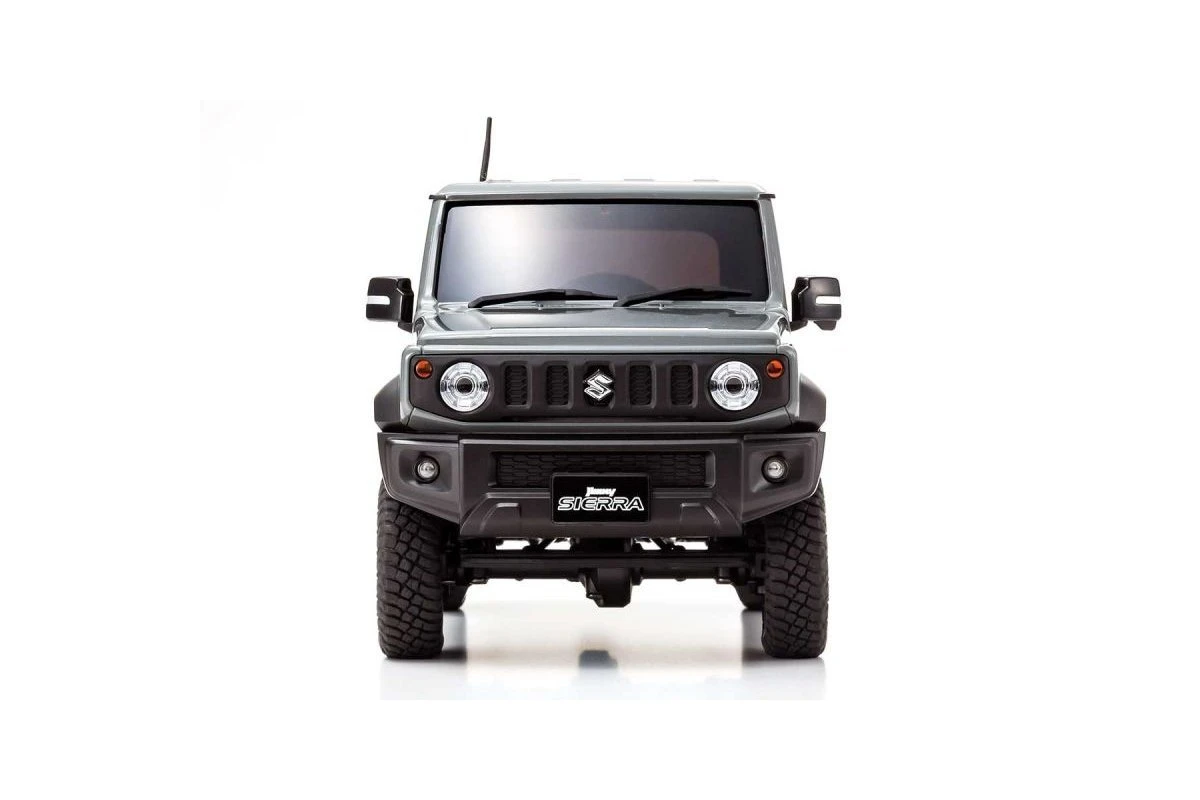

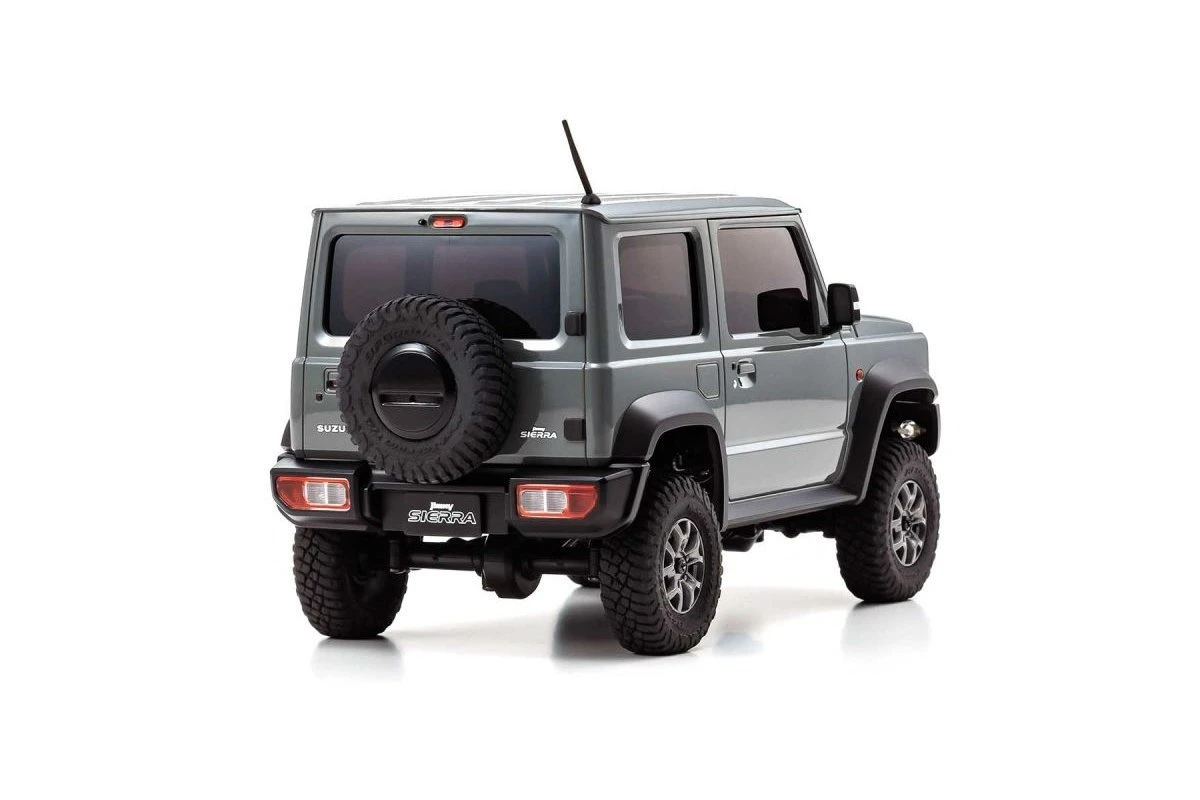

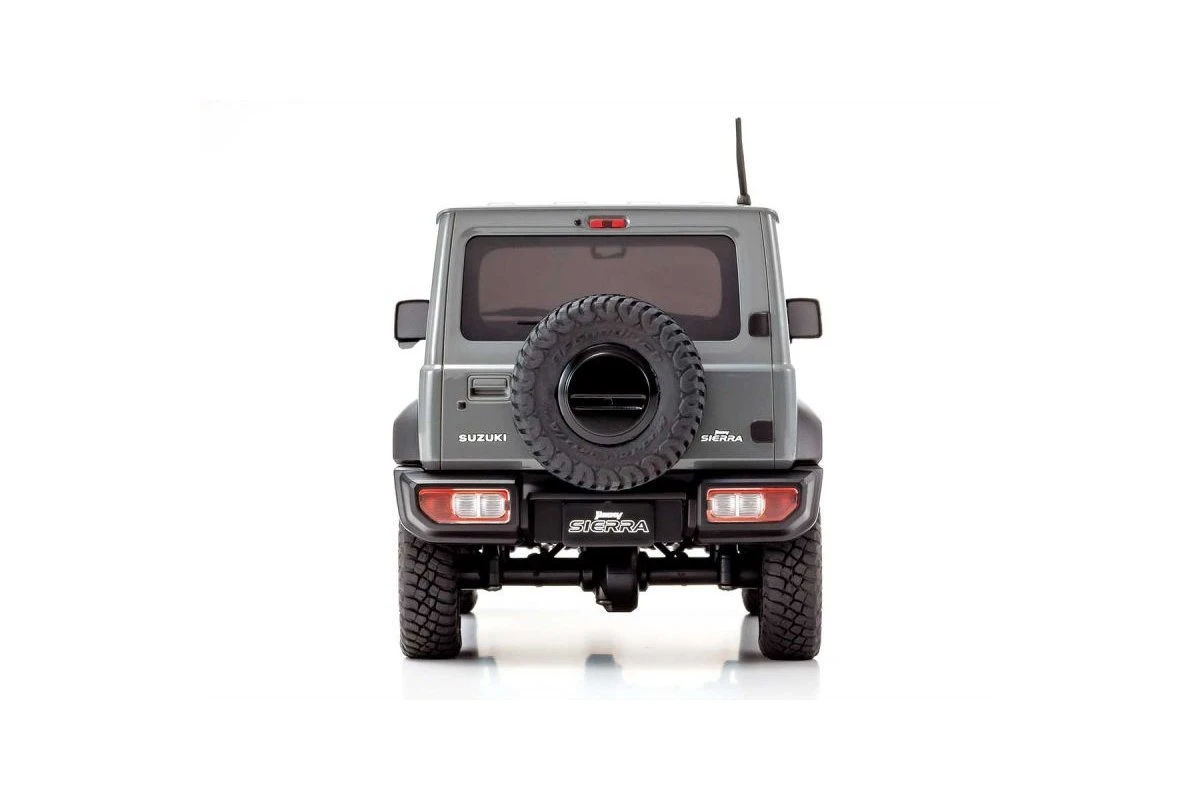

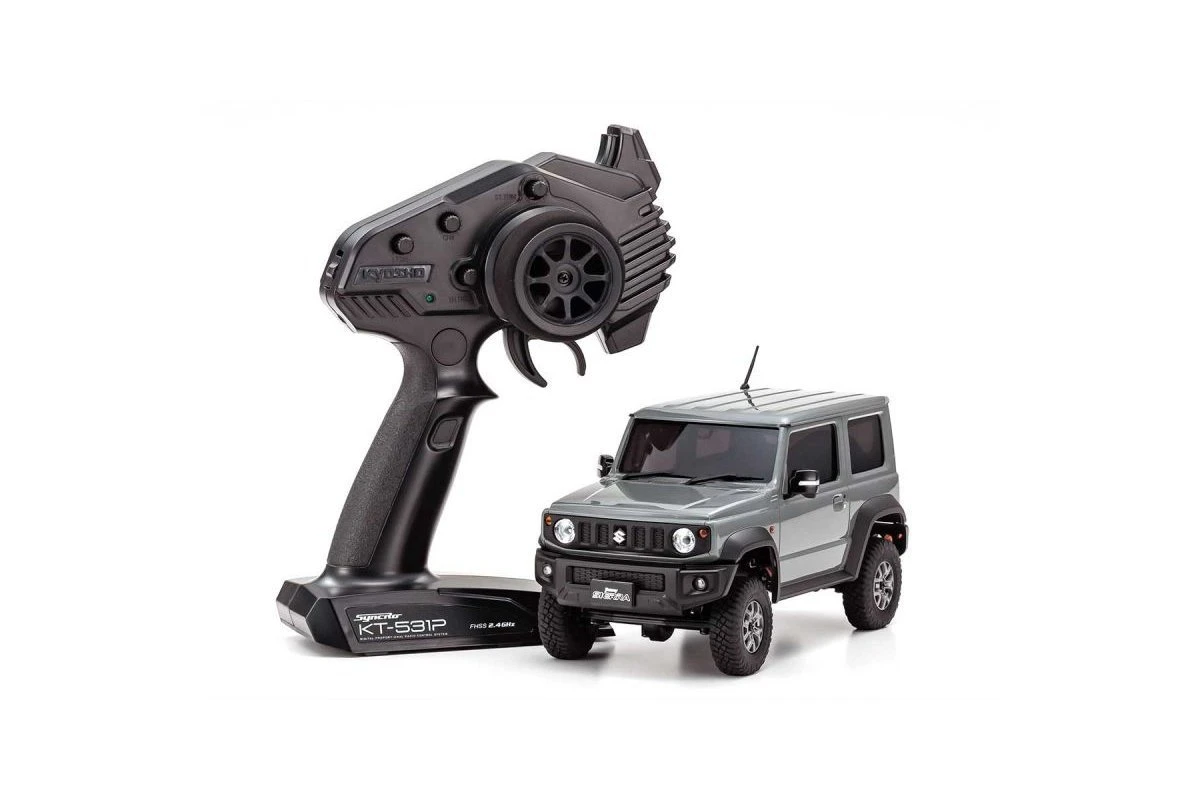

The combination of the highly-detailed body and a completely new 4×4 chassis design opens up new levels of performance, well beyond anything RC enthusiasts have ever seen from a mini crawler.

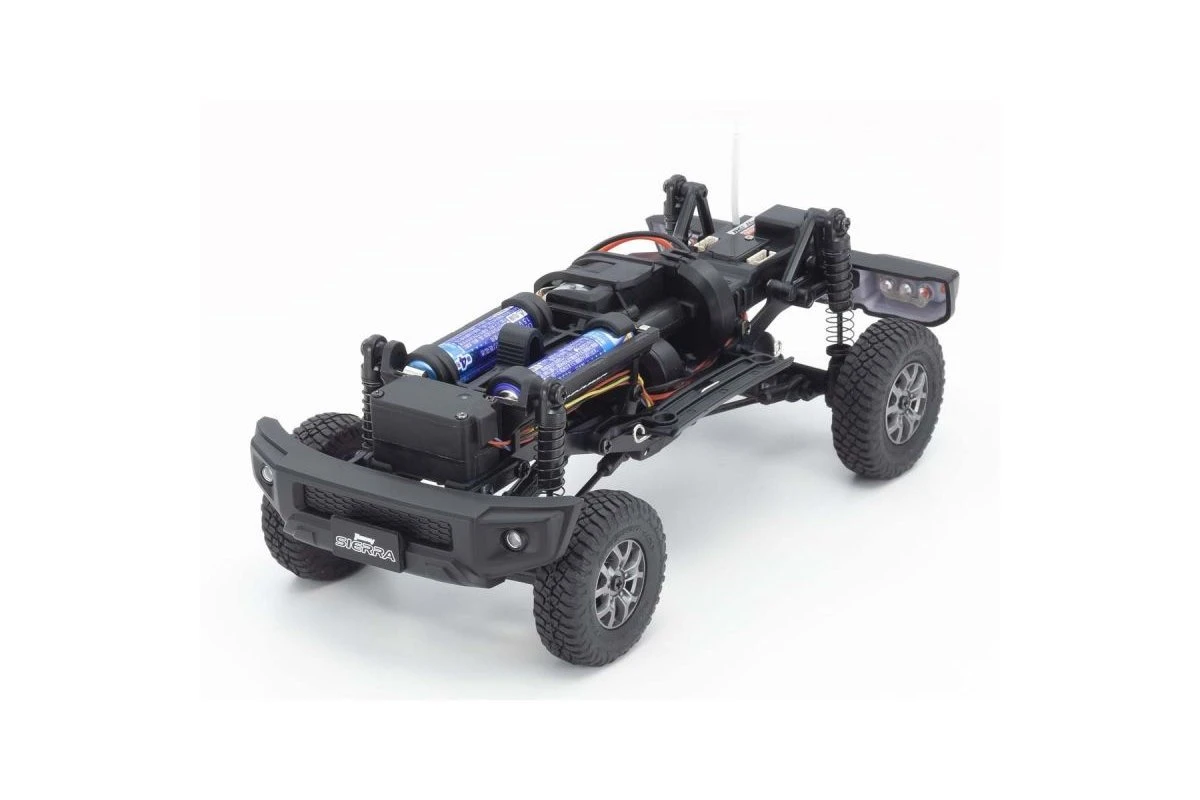

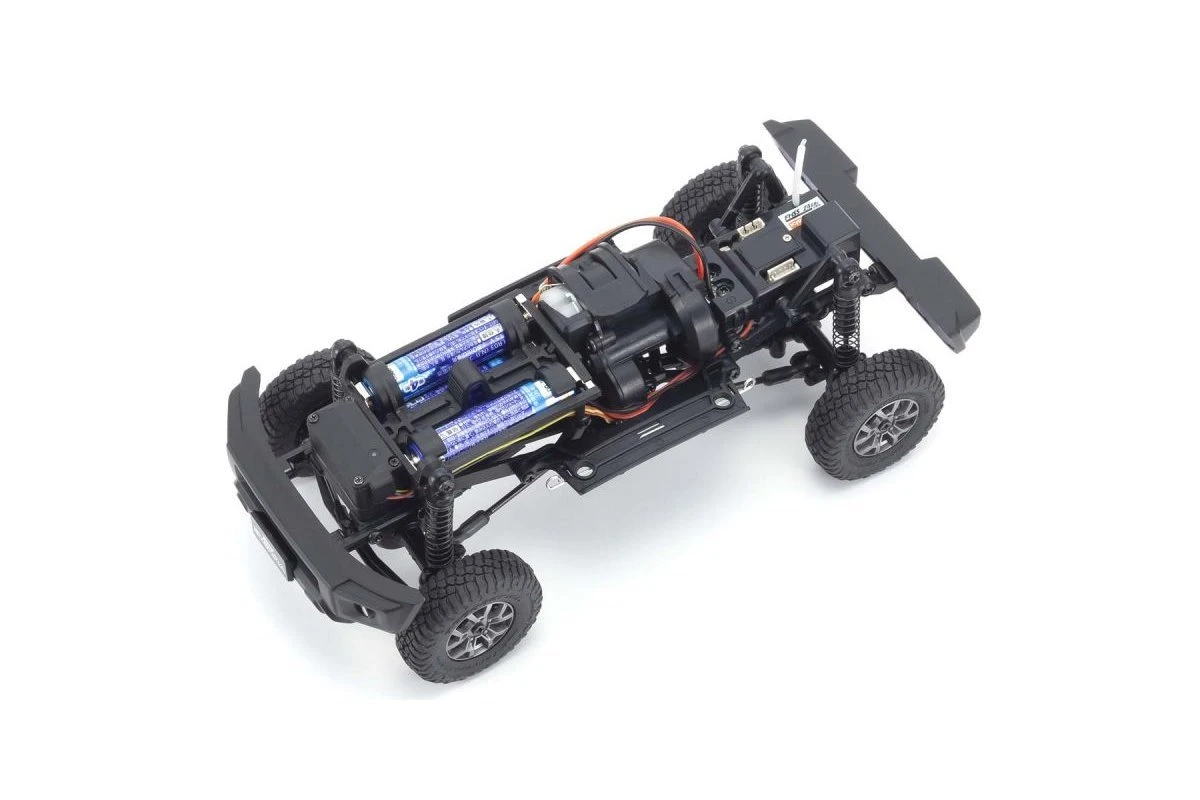

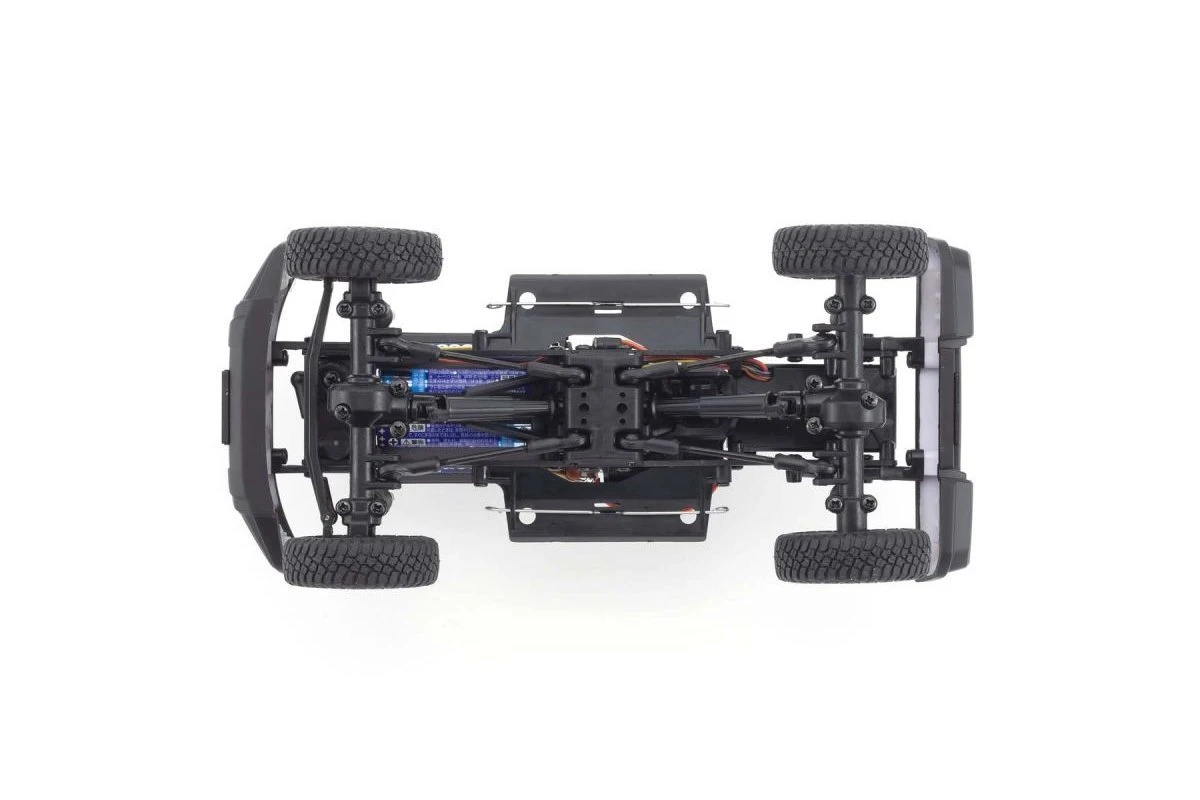

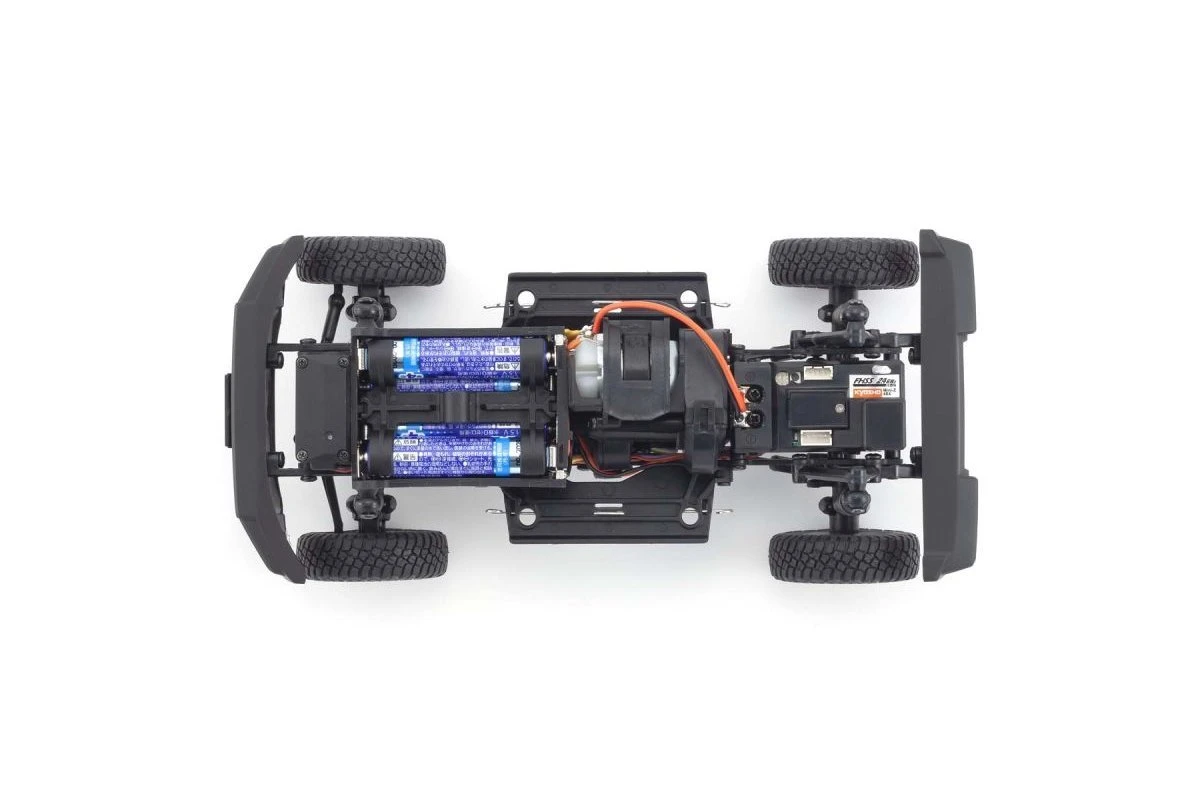

In 2019 the world’s most popular mini RC series, known as the Kyosho MINI-Z, celebrated more than 20 years of unmatched performance and scaled realism in the hobby-grade RC category. The continuous pursuit of performance and evolution has led to creating an entirely new ‘MINI-Z 4×4’ design that delivers an all-new driving experience for RC fans of all stripes, with the superior overall design, driving performance and high-quality injection-moulded scale body construction. A significant feature of the MINI-Z 4×4 series is the greater emphasis on body detail and quality of finish, surpassing existing benchmarks set by the MINI-Z. The body is also moulded with thicker material better to resist crash damage from operation in rough terrain. Incorporating the same ladder-style frame of actual 4WD vehicles, the MINI-Z 4×4 boasts a 3-link rigid axle suspension combining what would typically be two upper links into a single upper A-arm to deliver maximum suspension movement. A specially designed high-torque steering servo enables this machine to throw its elbows around in the rugged terrain for excellent performance in the most challenging rock-crawler conditions. The high-torque 130-size motor brings out the beast in the MINI-Z 4×4, specially geared to run well in the low to medium speed ranges common in crawling.

Designed to balance exquisite style, scale detail and superior driving performance, all the MINI-Z 4×4 needs is 8 x AAA alkaline batteries (sold separately). Enjoy driving under any conditions, from everyday driving to rock crawling, while appreciating the stunning visual appearance. The Kyosho Mini-Z 4×4 is the only mini crawler that delivers a full range of crawling performance in a smaller package.

• Length: 193mm (7.59″)
• Width: 84mm (3.30″)
• Height: 90mm (3.54″)
• Chassis: Type MX-01
• Wheel Base: 120mm (4.72″)
• Tread F/R: 72.7mm (2.86″)
• Weight: 242g (.533lbs) excl. battery
• Motor/Engine: 130 Class
• Gear Ratio: 55.44：1/46.20：1/39.60：1/34.65：1/30.80：1/27.72：1
• Front Tyre Diameter: Φ37mm (1.45″)
• Rear Tyre Diameter: Φ37mm (1.45″)
• Front Tyre Width: 12mm (.472″)
• Rear Tyre Width: 12mm (.472″)
• Battery: 4 x AAA alkaline
• Transmitter: Syncro KT-531P
• Speed: 3.3km/h〜6.6km/h (Pinion gears 10T〜 20T) approx.
• Running Time: 60 mins approx.

• 4 x AAA Batteries for Transmitter
• 4 X AAA Batteries for Chassis

Specifications
