The combination of the highly detailed body and a completely new 4×4 chassis design opens up new performance levels, well beyond anything RC enthusiasts have ever seen from a mini crawler.

In 2019 the world’s most popular mini RC series, known as the Kyosho MINI-Z, celebrated more than 20 years of unmatched performance and scaled realism in the hobby-grade RC category. The continuous pursuit of performance and evolution has led to creating a completely new ‘MINI-Z 4×4’ design that delivers an all-new driving experience for RC fans of all stripes, with the superior overall design, driving performance and high-quality injection-moulded scale body construction. A significant feature of the MINI-Z 4×4 series is the greater emphasis on body detail and quality of finish, surpassing existing benchmarks set by the MINI-Z. The body is also moulded with thicker material better to resist crash damage from operation in rough terrain. Incorporating the same ladder-style frame of real 4WD vehicles, the MINI-Z 4×4 boasts a 3-link rigid axle suspension combining what would normally be two upper links into a single upper A-arm to deliver maximum suspension movement. A specially designed high-torque steering servo enables this machine to throw its elbows around in the hard terrain for excellent performance in the toughest rock-crawler conditions. The high-torque 130-size motor brings out the beast in the MINI-Z 4×4, specially geared to run well in the low to medium speed ranges common in crawling.

Designed to balance exquisite style, scale detail and superior driving performance, all the MINI-Z 4×4 needs is 8 x AAA alkaline batteries (sold separately). Enjoy driving under any conditions, from normal driving to rock crawling while appreciating the stunning visual appearance. The Kyosho Mini-Z 4×4 is the only mini crawler that delivers a full range of crawling performance in a smaller package.

Chassis

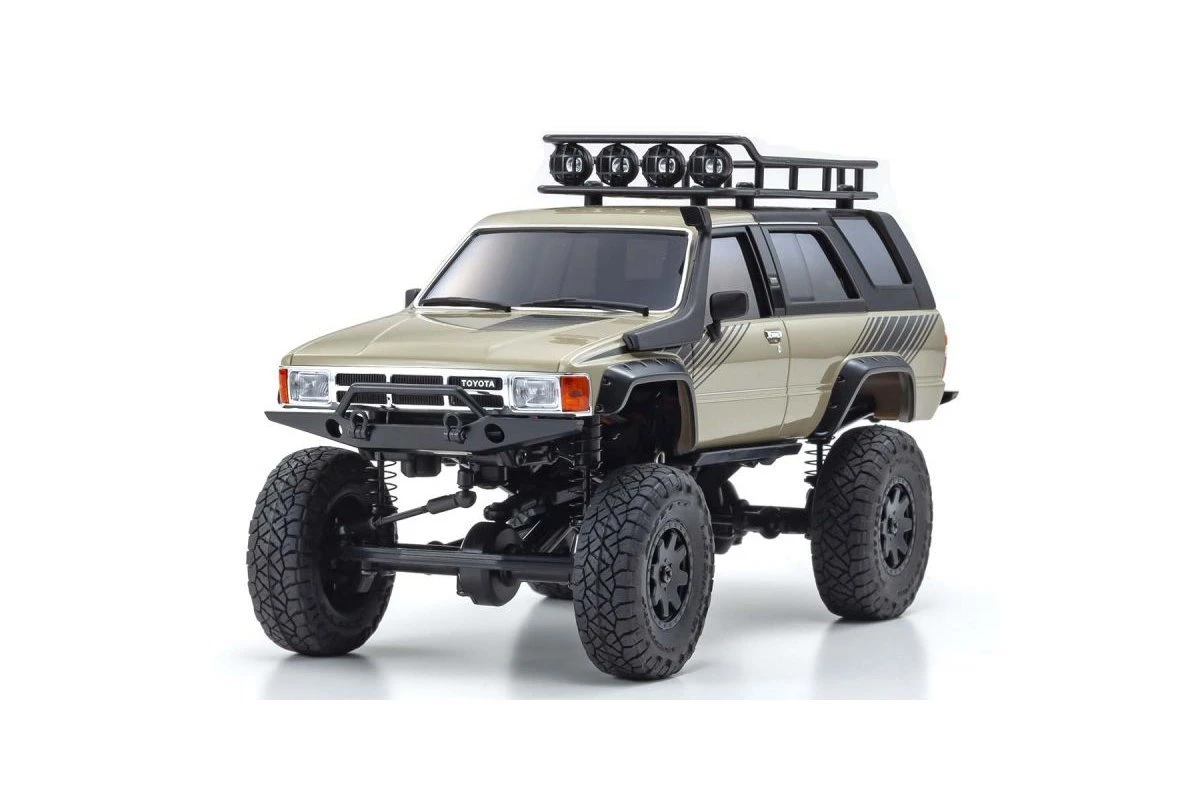

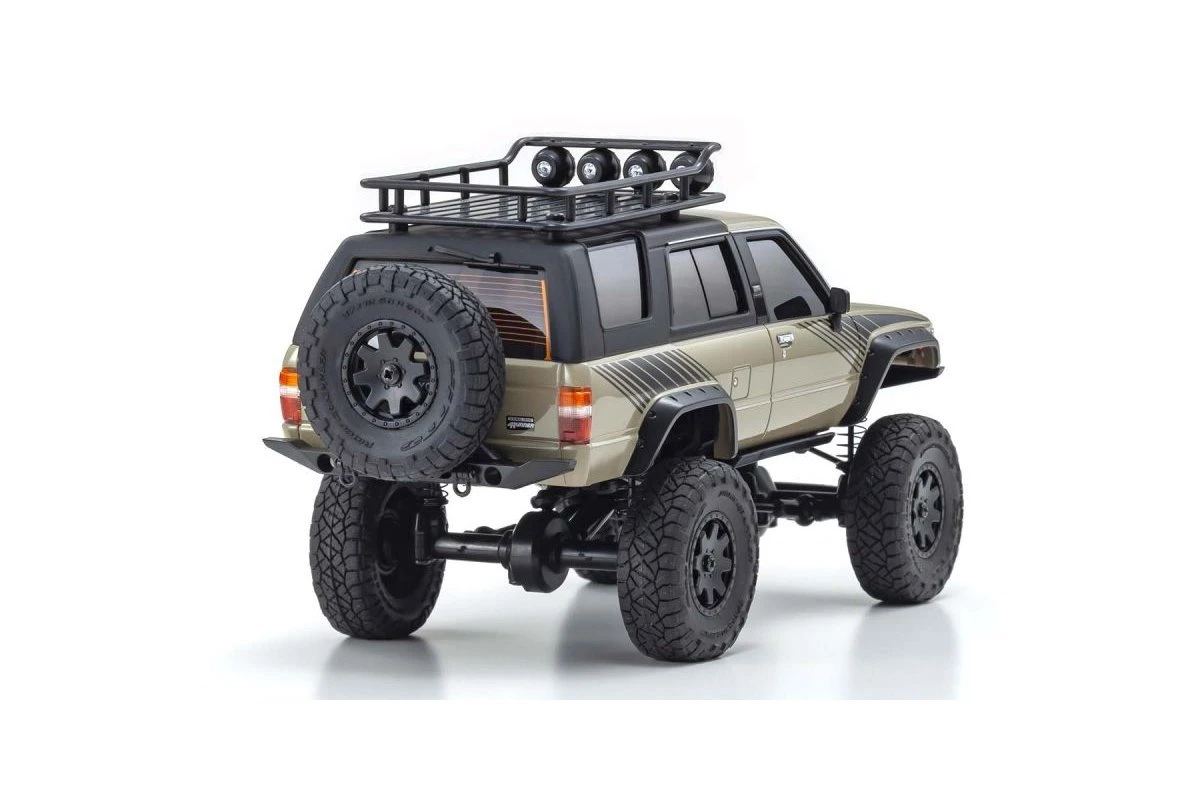

• Equipped with snorkel, roof rack and roof flight to enhance the atmosphere of crawling.
• Highly detailed Mini-Z body.
• Fully painted body shell.

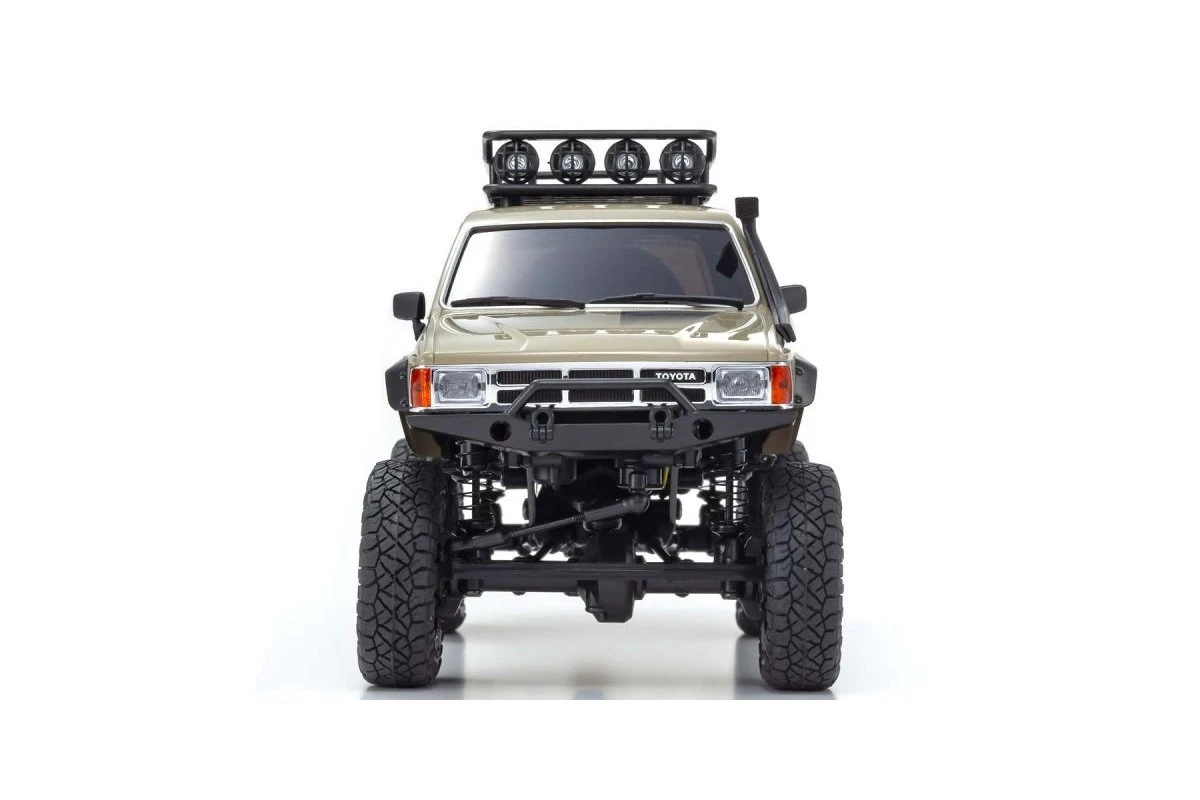

• Chrome plated grille & door handles.
• Roof has a matte finish.
• Rear window reproduce heat rays on the glass.
• One touch body mount.

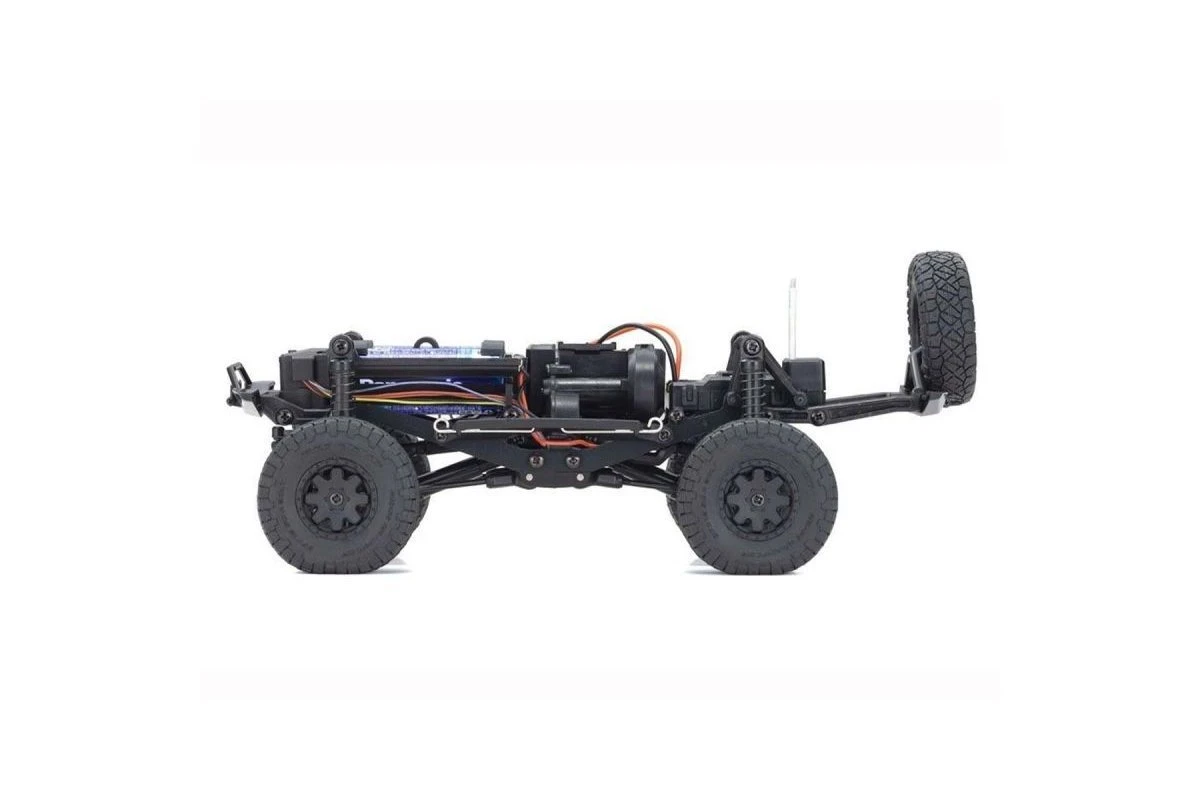

• The MINI-Z 4×4 has the same mechanism as the 1/10 scale off-road model.
• Ladder from made from steel.
• Link type solid metal axles.
• Steel linkages and ball-ends.
• Wheelbase can be adjusted to 110mm or 120mm.
• Coil-over type shock absorbers to support long-strokes.
• Drag link & tie rod for extreme turning circles.
• Nitto Ridge Grappler tyres with trapezoidal design.

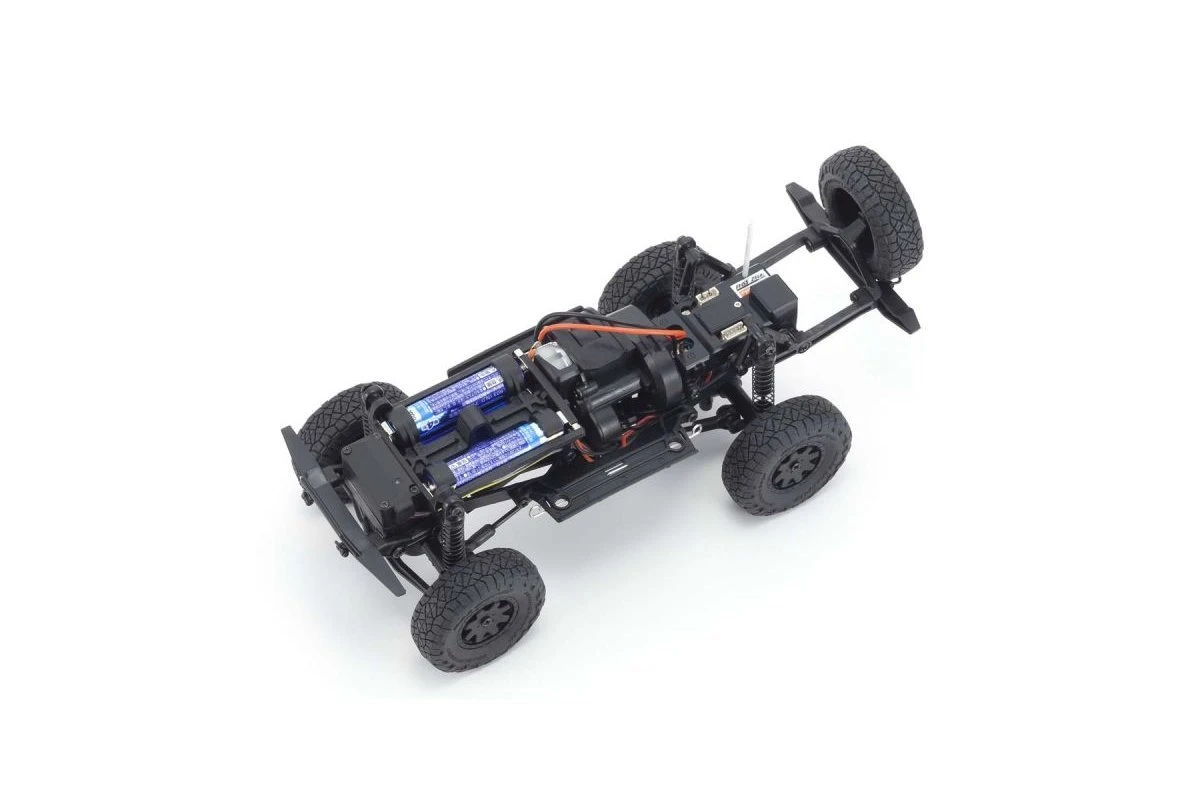

• Battery tray is located on the front-upper of the chassis for optimal weight distribution.

Driveline

• 4×4 main gear box with ultra-low gearing can handle steep slopes to high-speed flat roads.
• Six included pinion gears.
• Slipper clutch to protect the drive system under excessive load.
• Full metal ball bearings.
• 130 type motor designed for powerful driving in the low-speed range.

Electronics

• Steering servo & potentiometer have seperate wires to improve maintainability.
• An optional unit can be attached to the new speed controller.
• Exclusive high-torque Mini-Z 4×4 steering servo handles tough roads and roack crawling without difficulty.

Extreme Approach Angles

• Length: 200.5mm (7.89″)
• Width: 87mm (3.42″)
• Height: 86mm (3.38″)
• Wheelbase: 110mm (4.33″)
• Weight: 223g (.007oz) excluding battery
• Chassis: MX-01
• Tyre Tread F/R: 72.7mm/72.7mm (2.86/2.86″)
• Tyre Diameter F/R: Φ42/Φ42mm (1.65/1.65″)
• Tyre Width F/R: 14.3mm/14.3mm (.562/.562″)
• Drivetrain: 4WD
• Motor: 130 Class
• Gear Ratio: 55.44: 1, 34.65: 1, 46.20: 1, 30.80: 1, 39.60: 1, 27.72: 1

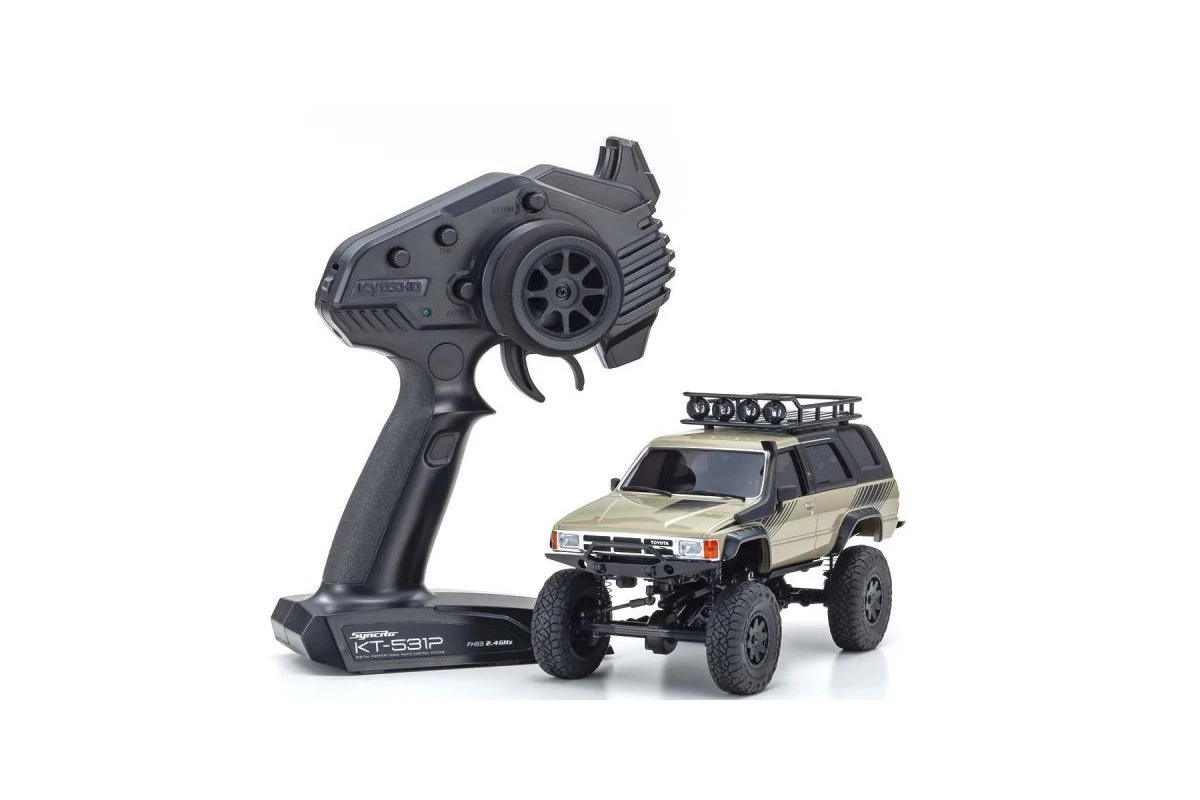

• Radio System: Syncro KT-531P
• Speed: 3.3 – 6.6 km/h (2.05 – 4.10 mp/h)
• Running Time: 60 Minutes approx.

• 4 x AAA Batteries for Transmitter
• 4 x AAA Batteries for Chassis

Specifications
