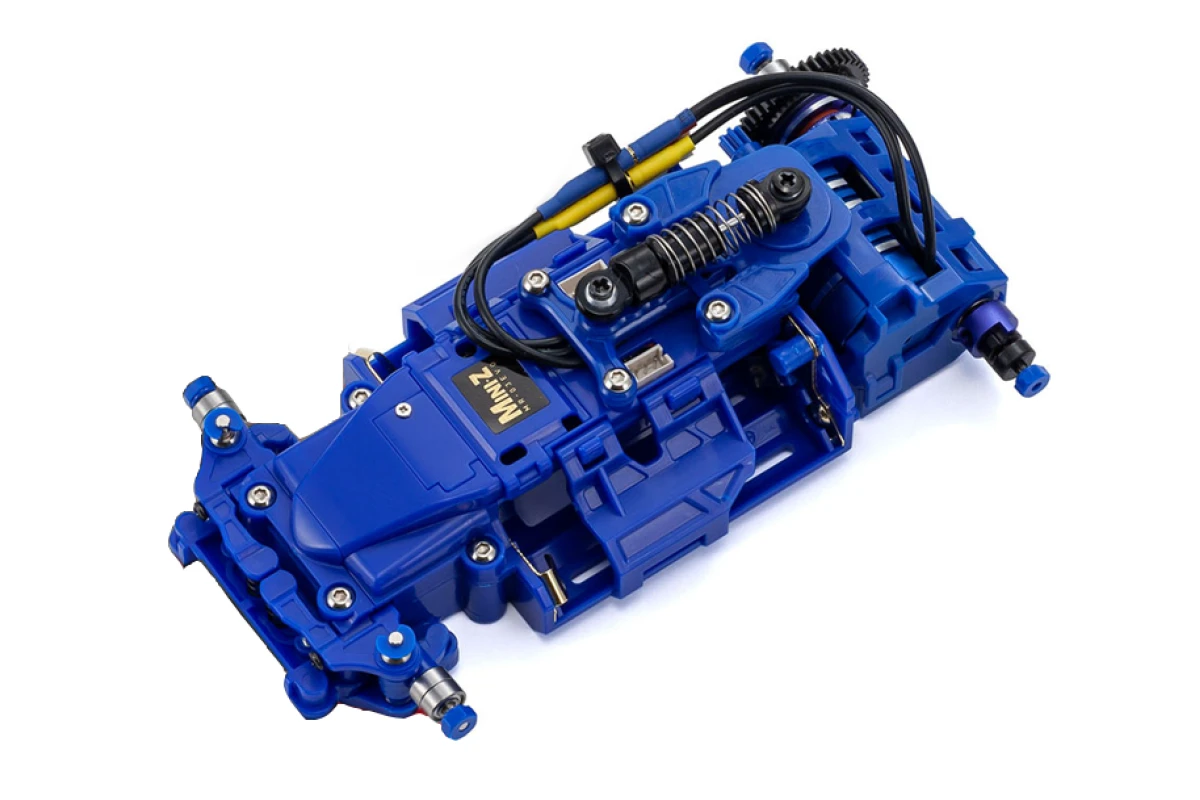

32793SP | Kyosho Mini-Z MR-03EVO SP Limited Chassis Set W/ 5600kv Motor – Blue

You can drive your MINI-Z using your favourite transmitter from Kyosho, KO or Futaba!
The MINI-Z MR-03 has evolved with a completely new system that works with receiver units
from other brands! Equipped with blue color chassis components, hex screws, oil shock
and blue color Ball Diff II as standard and comes with newly developed suspension arms
with various caster angles!

• Ball bearings
• Gold plated battery terminals
• 130-class compatible size 5600KV sensor-less brushless motor with double ball bearings and aluminium heatsink
  case.
• ESC and servo parameters adjustable via the ICS expansion port.
• Power indicator feature. Good for equal condition races.
• Gyro (sold separately) gain can be controlled via transmitter dials or switches.
• Separate receiver unit construction (receiver unit sold separately)
• Special blue anodized ball diff
• Oil shock as standard
• Nickel plated hex screws
• Front upper arms with caster angles of 1 deg, 2 deg and 3 deg included

• Scale: 1/27.6
• Length: 117.7mm
• Width: 65-76mm
• Height: 35mm
• Chassis Type: MR-03W-MM
• Wheelbase: 98.0mm(LL)
• Tread: Depending on wheel offset
• Weight: 135gr
• 130 class 5600KV brushless motor
• Gear Ratio: 7.3, 6.3, 5.5, 4.9:1
• Tire Diameter (F): sold separately
• Tire Diameter (R): sold separately
• Tire Width (F): sold separately
• Tire Width (R): sold separately
• Transmitter: sold separately
• Receiver Unit: sold separately

• 4 x AAA Batteries

Compatible Rx Modules

Remote gyro parameter setting: Throttle and steering gyro gain values are assigned to CH3 and
CH4 signals, so you can adjust them while driving by assigning switches and dials of your
transmitter.

Separate front upper suspension arm mount: Front suspension arms are mounted on a part
that is separate from the upper cover, which enables quicker front tread conversion.
