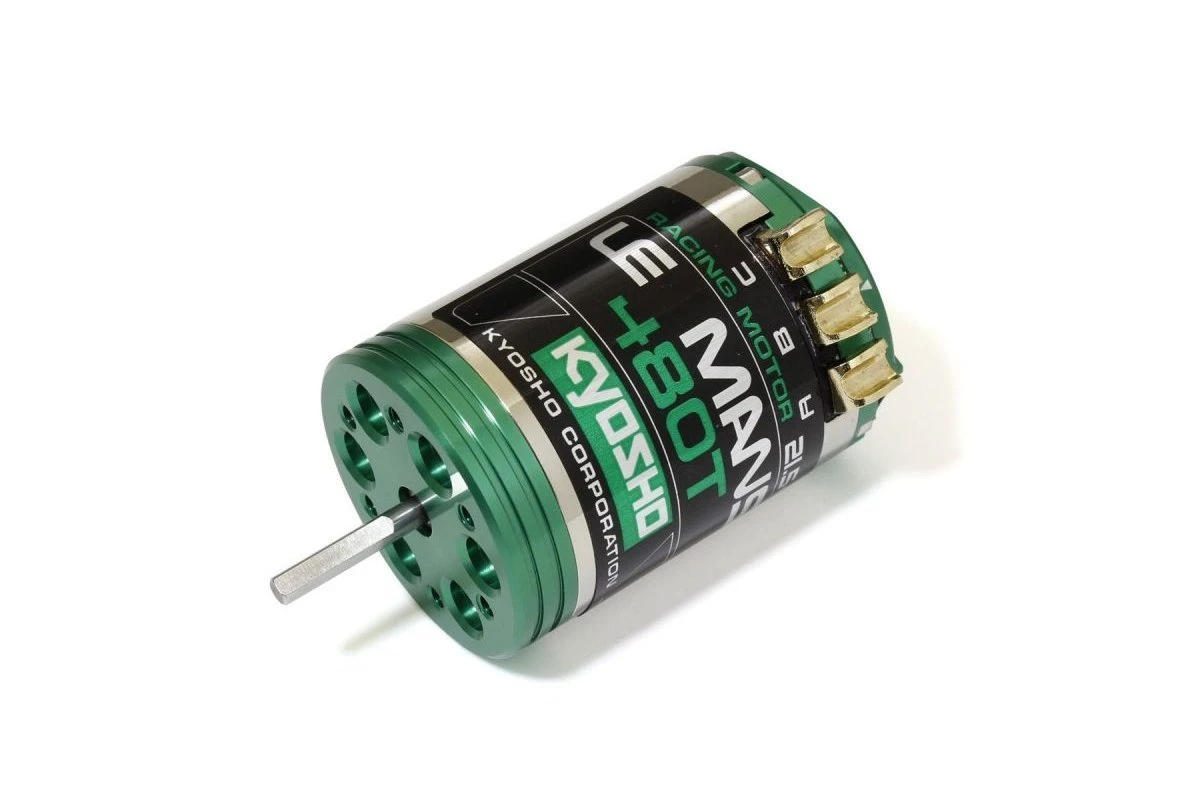

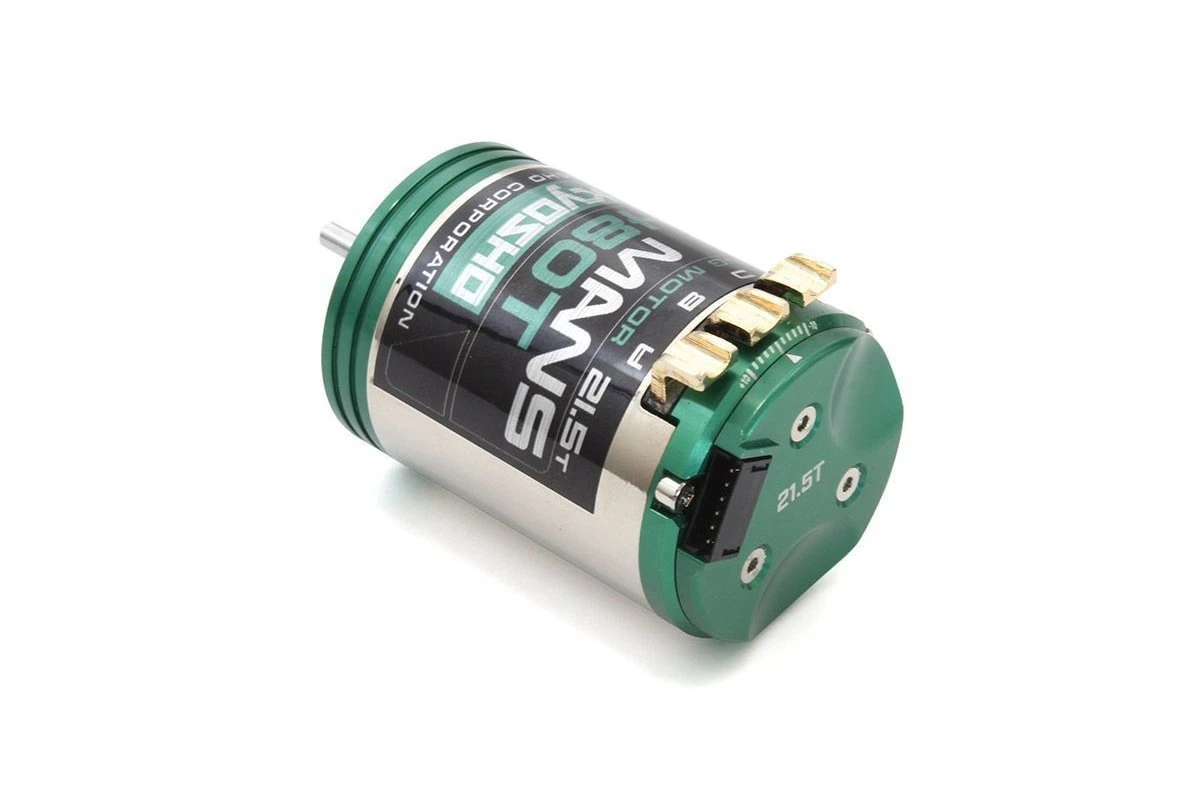

The Le Mans 480T & S motors that drove the RC car boom in the 1980’s in combination with the Fantom EP 4WD, return as brushless motors! Use the included aluminum parts and labels to convert the 480T (torque-type in the 1980’s model) to the 480S (speed-type in the 1980’s model).
Genuine Kyosho Part.

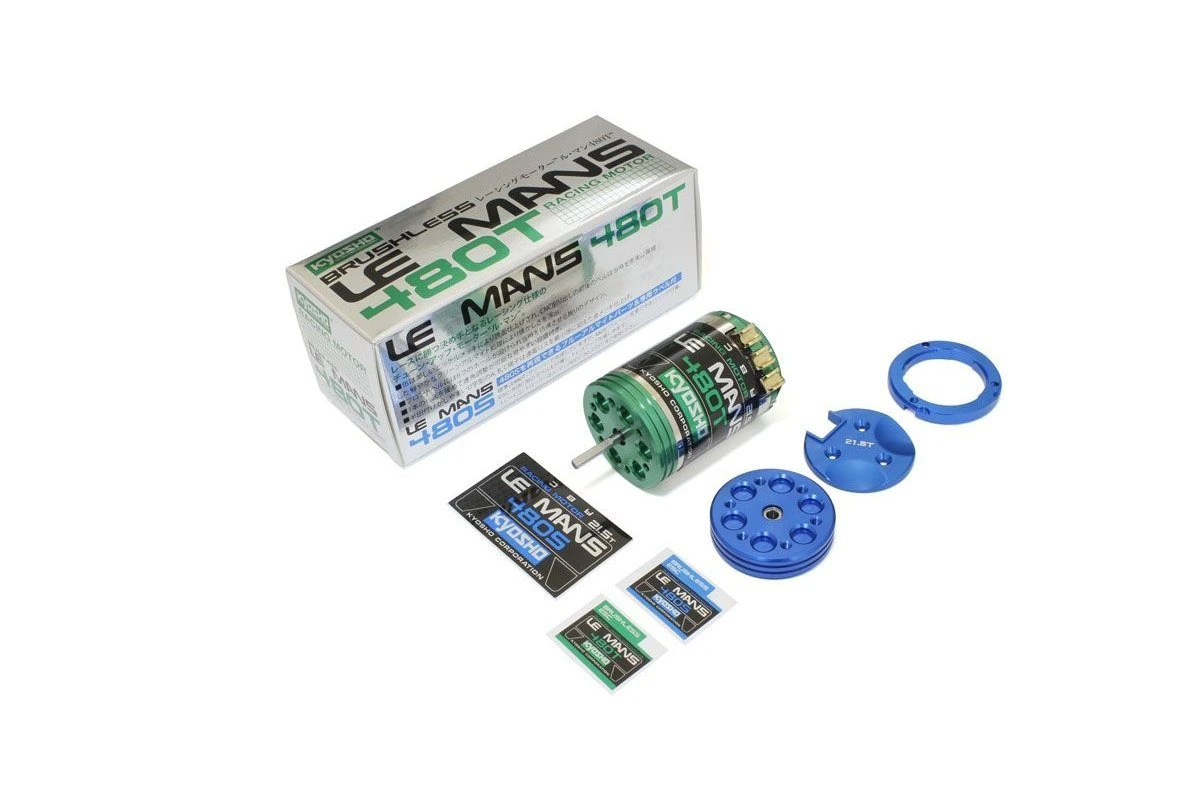

Includes blue anodized front plate, end bell and label. Remove 6 screws and reassemble to change the external appearance to the 480S. Two types of labels for Le Mans 240S ESC are also included for coordinating with the motor.

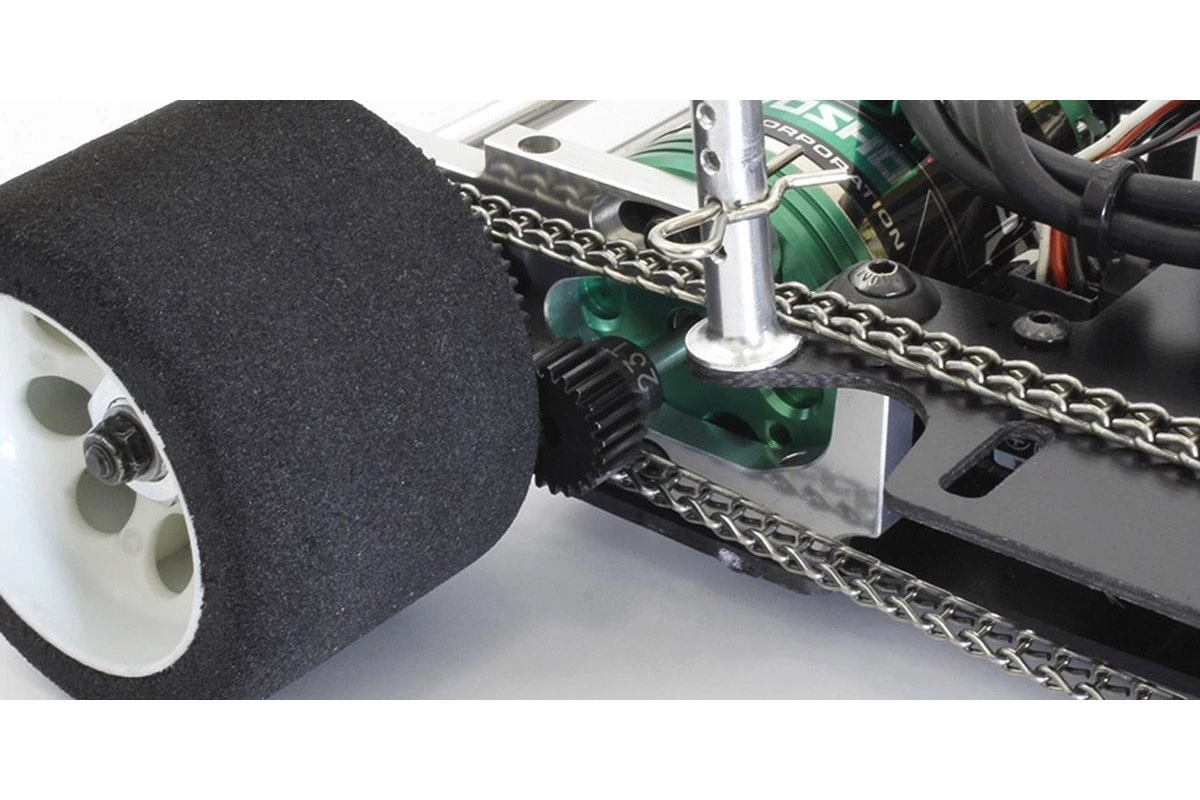

By extending the shaft length by 2mm, the long-shaft specifications optimal for the Fantom EP 4WD can be used with a standard 48 pitch pinion gear and deliver expanded range for gear ratio settings.
| Description | QTY |
|---|---|
| Brushless Motor. | 1 |
Specifications
| Motor | |
|---|---|
| Motor Type: | Brushless |
| Can Length (mm): | 51.2 |
| Can Diameter (mm): | 35.8 |
| KV (RPM/V): | 1950 |
| Shaft Diameter (mm): | 3.175 (1/8″) |
| Turns: | 21.5T |
