82273 | Kyosho Servo Perfex KS-5031-09MW Metal Gears W/ Hardware
Original price was: $103.17.$65.00Current price is: $65.00.
- 7 days free returns
- 7 Days of Hassle-Free Returns
- Multiple payment options for secure shopping with SSL
- Unbeatable quality, unbeatable prices.
 Servos are powered by the ESC’s output to the receiver. If you’re using a higher-strength servo than the ESC can support (usually greater than 20kg), you may experience ‘brown-outs’ where the radio signal can be interrupted and cause erratic driving. This can be helped by plugging a Glitch Buster into the receiver smoothing the current delivery. However, in some cases, you may need to install an external BEC.

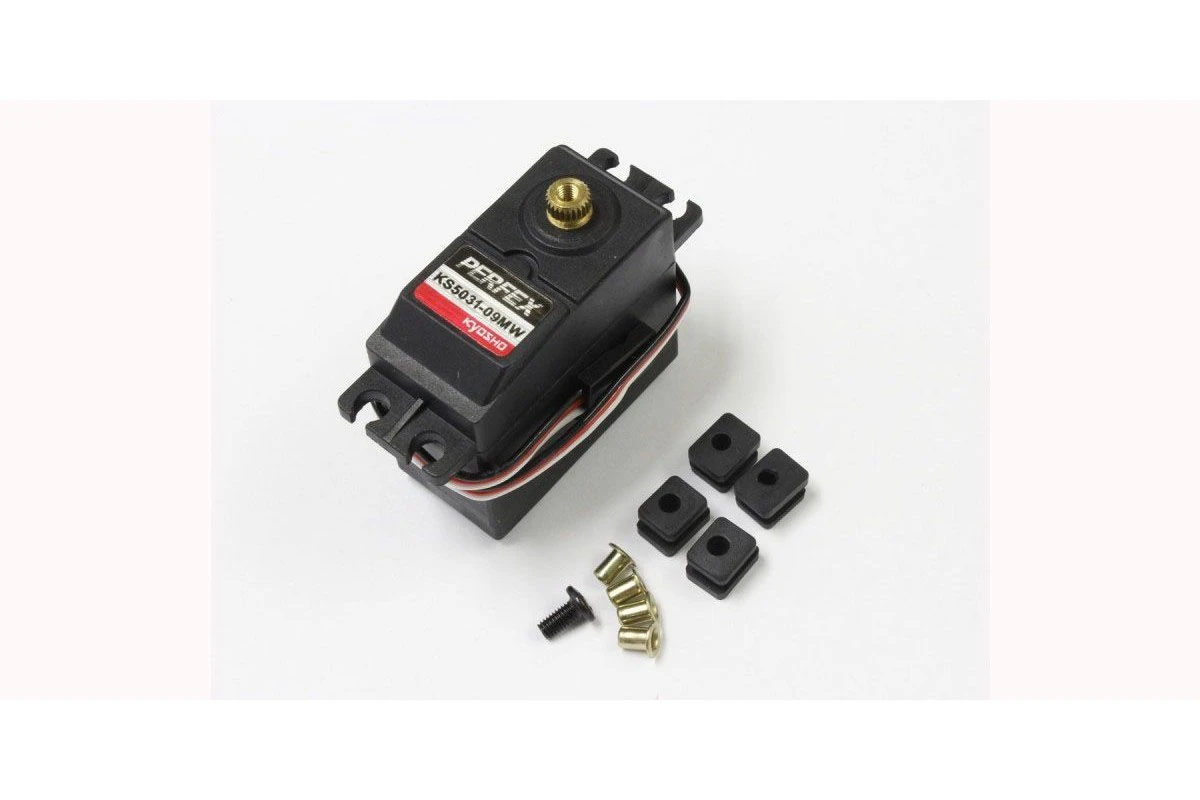

This is the Kyosho Perfex KS-5031-09MW Metal Gear Servo. This is the replacement steering servo for the Kyosho MP9 ReadySet and Mad Force Krusier 2.0, but is a good low cost alternative for any application that could benefit from a metal gear servo with 9kg-cm of torque. Package includes rubber grommets and horn mounting hardware.
- Genuine Kyosho Part
- Suitable for RC cars 1/10 scale on/off road and drifting.
- Upper/middle/bottom: Aluminium Case.
- Torque(6V): 9 kg-cm
- Speed: 0.15 sec (6V)
- Operating Voltage：4.8 ~ 6.0V DC Volts
- Weight: 57.5 g
- Gear Type：Metal
- Mounting Hardware
Servo Specifications
Total Height (A) = 38mm
Body Width (B) = 20.1mm
Below Mount (C) = 27mm
Above Mount (D) = 10mm
Total Length (E) = 40.8mm
Total Width (F) = 20.1mm
Specifications
| Servo | |
|---|---|
| Servo Size: | Standard |
| Servo Spline Count: | 25 |
| Gear Material: | Metal |
| Torque kg/cm: | 9 |
| Case Material: | Aluminium |
| Rotational Degrees: | 120o (Normal) |
| 6.0v Sec/60 Degrees: | 0.15 |
